Images not loaded from condition file

Builder
1

Hello, I’m new to using psychopy, and I am having difficulty with creating an experiment using the builder.

I uploaded the condition file in the loop, and I wrote $stim in “image properties”. However, when i run the experiment I get the following error:

"File “C:\Users\martina.montalti\Desktop\gonogo_psychopy\martinaprove.py”, line 1, in
_thisDir = os.path.dirname(os.path.abspath(martinaprove)).decode(sys.getfilesystemencoding())
NameError: name ‘os’ is not defined
################ Experiment ended with exit code 1 [pid:13500] #################
Generating PsychoPy script…

Running: C:\Users\martina.montalti\Desktop\gonogo_psychopy\martinaprove_lastrun.py

2931.8137 INFO Loaded monitor calibration from [‘2023_09_06 16:20’]
using PyQt5
pygame 2.1.0 (SDL 2.0.16, Python 3.8.10)
Hello from the pygame community. Contribute - pygame wiki
32.7085 WARNING User requested fullscreen with size [1024 768], but screen is actually [1920, 1080]. Using actual size
Traceback (most recent call last):
0.0189 DEPRECATION Couldn’t find image C:\Users\martina.montalti\Desktop\gonogo_psychopy\images\FF3_NOMA.bpm; check path? (tried: C:\Users\martina.montalti\Desktop\gonogo_psychopy\images\FF3_NOMA.bpm)
2.0632 WARNING Monitor specification not found. Creating a temporary one…
ioHub Server Process Completed With Code: 0
File “C:\Users\martina.montalti\Desktop\gonogo_psychopy\martinaprove_lastrun.py”, line 556, in
run(
File “C:\Users\martina.montalti\Desktop\gonogo_psychopy\martinaprove_lastrun.py”, line 370, in run
image.setImage(stim)
File “C:\Program Files\PsychoPy\lib\site-packages\psychopy\visual\image.py”, line 414, in setImage
setAttribute(self, ‘image’, value, log)
File “C:\Program Files\PsychoPy\lib\site-packages\psychopy\tools\attributetools.py”, line 134, in setAttribute
setattr(self, attrib, value)
File “C:\Program Files\PsychoPy\lib\site-packages\psychopy\tools\attributetools.py”, line 27, in set
newValue = self.func(obj, value)
File “C:\Program Files\PsychoPy\lib\site-packages\psychopy\visual\image.py”, line 389, in image
self.isLumImage = self._createTexture(
File “C:\Program Files\PsychoPy\lib\site-packages\psychopy\visual\basevisual.py”, line 1047, in _createTexture
raise IOError(msg % (tex, os.path.abspath(tex)))
OSError: Couldn’t find image C:\Users\martina.montalti\Desktop\gonogo_psychopy\images\FF3_NOMA.bpm; check path? (tried: C:\Users\martina.montalti\Desktop\gonogo_psychopy\images\FF3_NOMA.bpm)
################# Experiment ended with exit code 1 [pid:1536] #################
2979.3811 INFO Loaded monitor calibration from [‘2023_09_06 16:20’]"

Could you help me? Attached screenshot
Thank you in advance.
Best,
MM

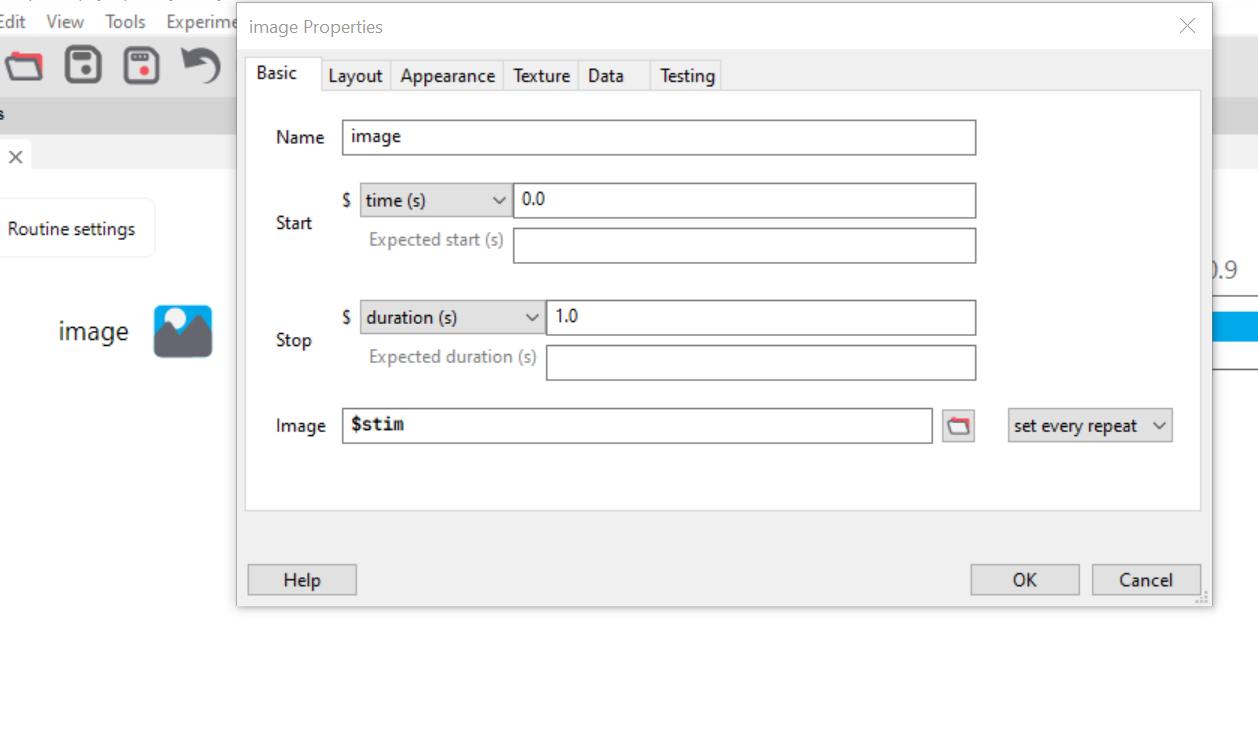

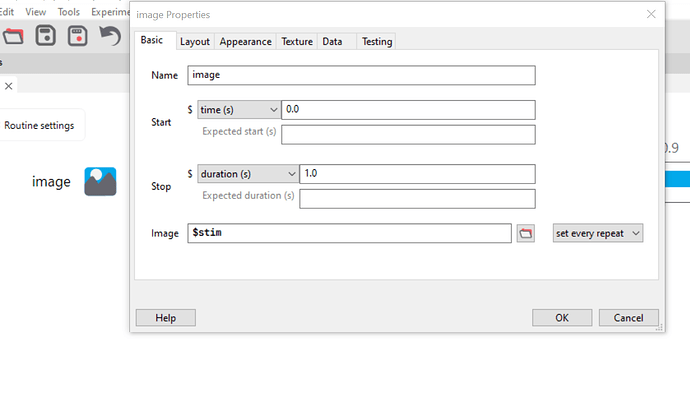

image1258×730 63.5 KB

image838×580 38.9 KB

2

Hi

  1. I would recommend that you place your experiment in your documents folder rather than your desktop
  2. Use a relative path in your conditions file ( images/FF1_NOMA.bpm)
  3. Are your images actually .bmp files? I don’t recognise .bpm. Google tells me it’s a Bizagi Process Modeler Document file. The main issue may be that you have .bmp files in your images folder and you have told PsychoPy to look for ,bpm files.
3

Thank you! It works!
